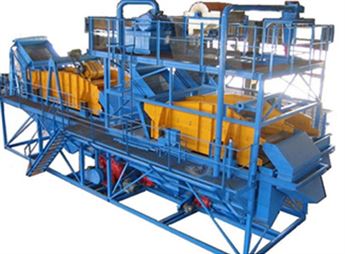

Heavy Media Fine Coal Washing Plants

fine coal washing plant(2)
fine coal washing plant(2)
fine coal washing plant(2)
fine coal washing plant(2)

CWP constructs fine coal washing solutions on EPC / Concept to Commissioning basis.

CWP can manufacture Heavy Media Cyclone Plants with a minimum capacity of 25 TPH to the customer defined capacities which can wash + 0,5 mm - 50 mm coal. The Heavy Media Cyclone Plants, engineered and designed by CWP, might be installed as semi-mobile and stationary. Dense media washing, as the latest available washing technology, provides the most efficient results available. CWP can construct a complete fine coal washing plant from input hoppers to output conveyors including all classification, separation and dewatering/drying applications and also manufactures separate washing modules.

CWP can guarantee for the required higher calorific value and lower ash content in the product coal if the proper raw coal data is priorly provided by the customer.

  Technical Features:
Separates + 0,5 mm - 50 mm materials

  With 2 products washing cyclone:
Clean coal and discharge can be obtained.

  With 3 products washing cyclone:
Clean coal, middlings and discharge can be obtained.

Cyclones can be made of Ni-Hard 4 high resistant cast or ceramic lined (Alumina 47).

  General Features:

Efficient separation

Efficient control for separation cut point.

High capacity processing

Efficient water recirculation

Minimum magnetite loss
Coal grain size (mm) Unit capacity (t/h)
   +0,5-10    25
   +0,5-20    50
   +0,5-40    100
   +0,5-50    150
   +0,5-50        200
   +0,5-50    250
